Description

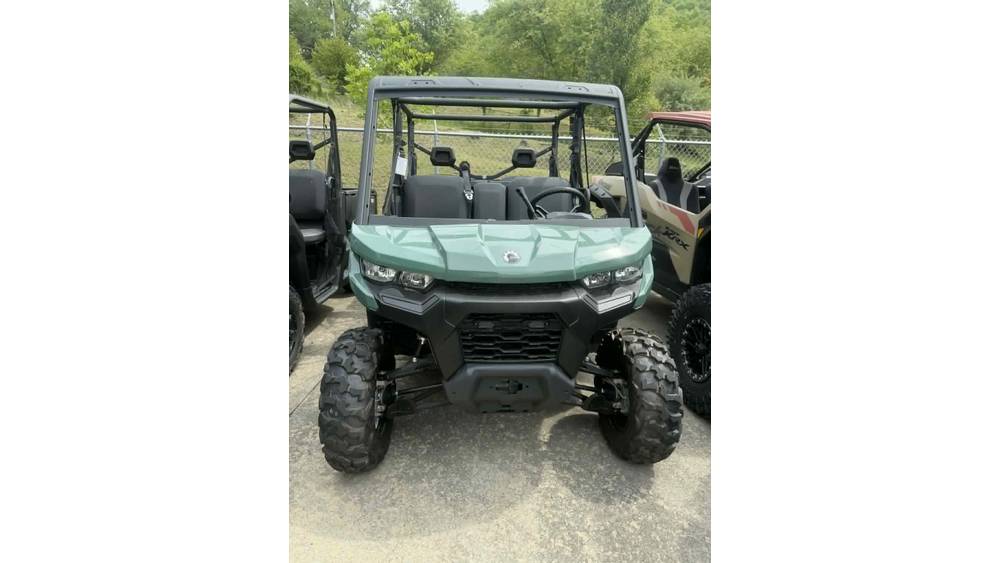

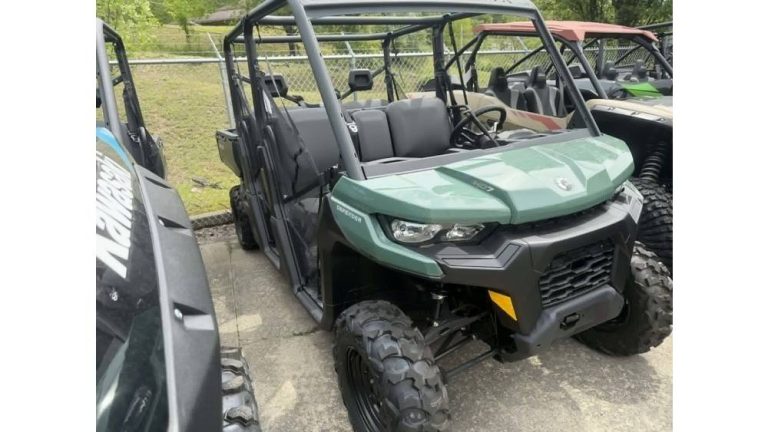

Get ready to conquer any terrain in style with the 2026 Can-Am™ Defender MAX HD7 in the striking Compass Green color. This UTV means business when it comes to work and utility, thanks to its tough steel frame and durable plastic body.

Under the hood, you’ll find the powerful Rotax® single-cylinder engine delivering 52.0 horsepower and 42.0 ft-lbs of torque, all while running smoothly with liquid cooling. The Continuously Variable Transmission (CVT) with PDrive ensures seamless gear shifts for maximum efficiency.

With a wheelbase of 115.5 inches and ground clearance of 11.0 inches, the Defender MAX HD7 can handle rough terrain with ease. Its impressive payload capacity of 1700 lbs and towing capacity of 2500 lbs make it a true workhorse, ready to take on any task you throw its way.

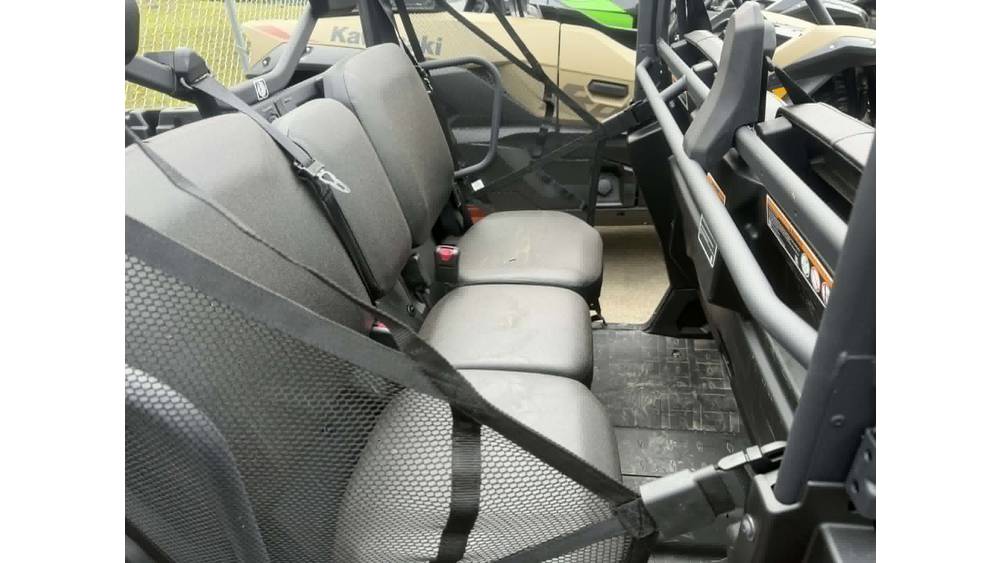

The spacious 6-person bench seat with vinyl material and headrests ensures a comfortable ride for all passengers, making it perfect for long days on the job site or weekends exploring off-road trails. The intuitive manual steering control and durable steel wheels provide a smooth and reliable driving experience.

Need to carry gear or equipment? The bed offers a generous capacity of 1000 lbs, along with integral tie-down hooks for secure transport. Whether you’re hauling tools or hitting the trails for some outdoor adventure, the Defender MAX HD7 has got you covered.

Illuminate the path ahead with the halogen headlights, and rest assured knowing the Temperature and Fuel Level warning lights will keep you informed at all times. With dual hydraulic disc brakes on all wheels, you can confidently navigate steep descents or sudden stops with ease.

Equipped with Selectable 4X2 / 4X4 driveline modes and ViscoLok front differential lock, this UTV offers excellent traction and control in varying terrain. The practical rear hitch receiver adds versatility for towing or attaching accessories, making it a true all-in-one workhorse.

Don’t forget the sleek and stylish Compass Green color, making the 2026 Can-Am™ Defender MAX HD7 stand out from the crowd wherever you go. Whether you’re on the job or seeking adventure, this UTV is ready to take on the challenge with confidence and style.

Get behind the wheel of the 2026 Can-Am™ Defender MAX HD7 in Compass Green and experience the ultimate blend of work and play in one versatile package.

Color Options
Compass Green: +$0
Pricing
Warranty (Months): 12
Engine
Engine Type: Single-Cylinder
Cylinders: 1
Horsepower: 52 bhp; 38.8 kW
Cooling: Liquid
Bore: 91 mm; 3.58 in
Stroke: 61.5 mm; 2.42 in
Displacement: 650 cc; 39.7 ci
Starter: Electric
Alternator Amps: 18
Fuel Type: Gas
Carburetion Type: Fuel Injected
Transmission
Transmission Type: Continuously Variable (CVT)
Reverse: Yes
Drive Line
Driveline Type: Selectable 4X2 / 4X4
Technical Specifications
Length: 153.4 in; 3896 mm
Width: 63.5 in; 1612 mm
Height: 76 in; 1930 mm
Wheelbase: 115.5 in; 2940 mm
Ground Clearance: 11 in; 280 mm
Dry Weight: 1757 lbs; 797 kg
Towing Capacity: 2500 lbs; 1134 kgs
Fuel Capacity: 10.6 gal; 40 l
Storage Capacity: 0.5 cuft; 3.1 gal
Exterior
Frame: Steel
Suspension
Front Suspension Type: Double A-Arm
Front Travel: 10 in; 254 mm
Rear Suspension Type: Independent
Rear Travel: 10 in; 254 mm
Wheels & Tires
Front Tire (Full Spec): XPS Trail Force 27 x 9-14
Rear Tire (Full Spec): XPS Trail Force 27 x 11-14
Brakes
Front Brake Type: Dual Hydraulic Disc
Rear Brake Type: Dual Hydraulic Disc
Seats
Number Of Seats: 6
Instrumentation
Speedometer: Standard
Tachometer: Standard
Trip Odometer: Standard
Storage
Bed Capacity: 1000 lbs.; 454 kgs.
Lights
Type: Halogen
Glass
Rearview Mirrors: Optional
Windshield: Optional

Product Specs
Engine
Engine Type Single-Cylinder
Displacement 39.7 cu. in. (650 cc)
Bore and Stroke Bore: 3.58 in. (91 mm); Stroke: 2.42 in. (61.5 mm)
Cooling Liquid
Fuel System Gas
Chassis
Front Suspension Double A-Arm
Front Brakes Dual Hydraulic Disc
Front Tire XPS Trail Force 27 x 9-14
Rear Suspension Independent
Rear Brakes Dual Hydraulic Disc
Rear Tire XPS Trail Force 27 x 11-14
Dimensions
Dry Weight 1757 lb. (797 kg.)
Wheelbase 115.5 in. (2940 mm)
Front Travel 10 in. (254 mm)
Rear Travel 10 in. (254 mm)
Ground Clearance 11 in. (280 mm)
Fuel Capacity 10.6 gal. (40 L)
Box Capacity 1000 lbs. (454 kg.)
Towing Capacity 2500 lb. (1134 kg.)
Transmission
Drive System Continuously Variable (CVT)
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Warranty 12
